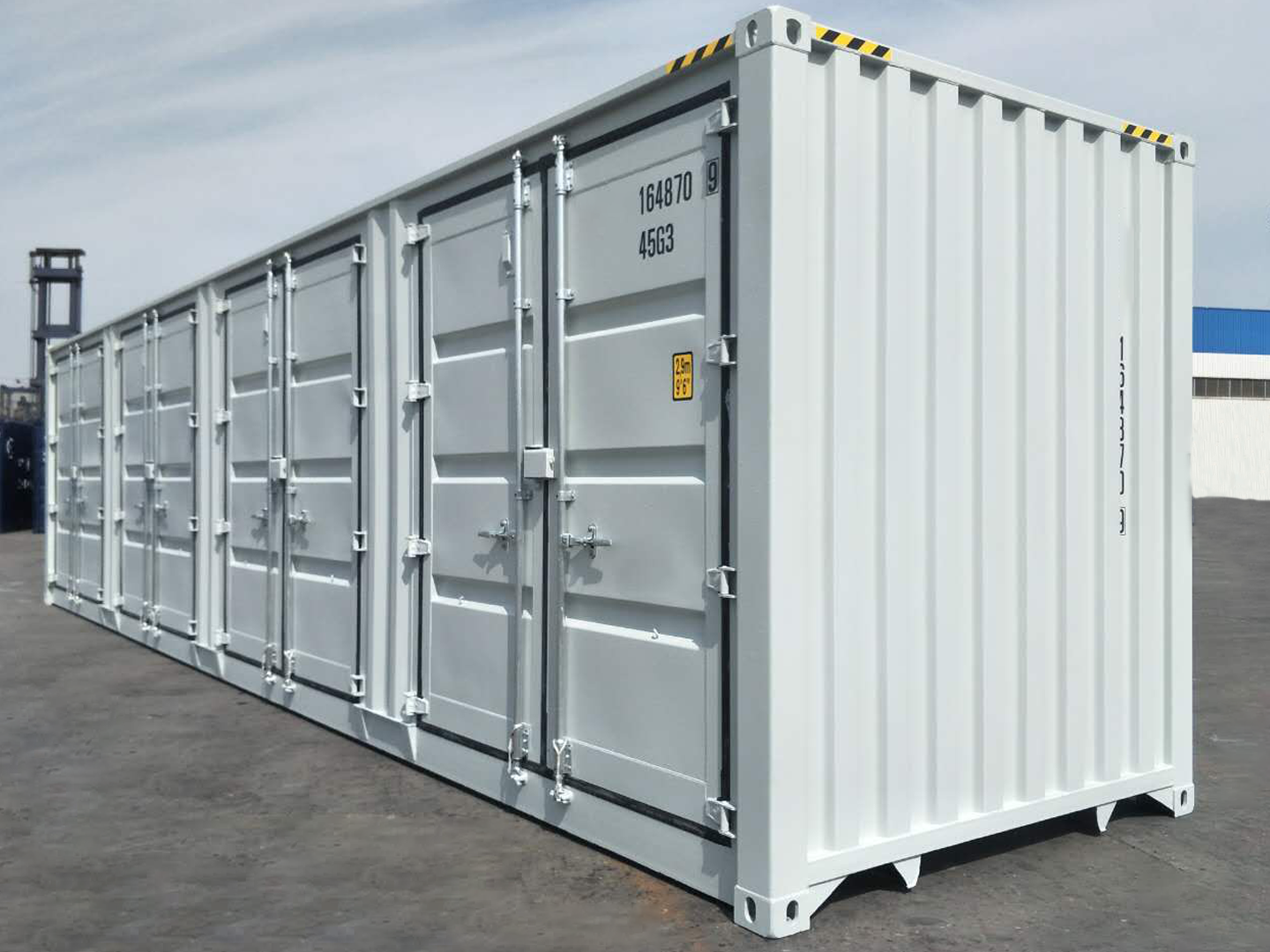

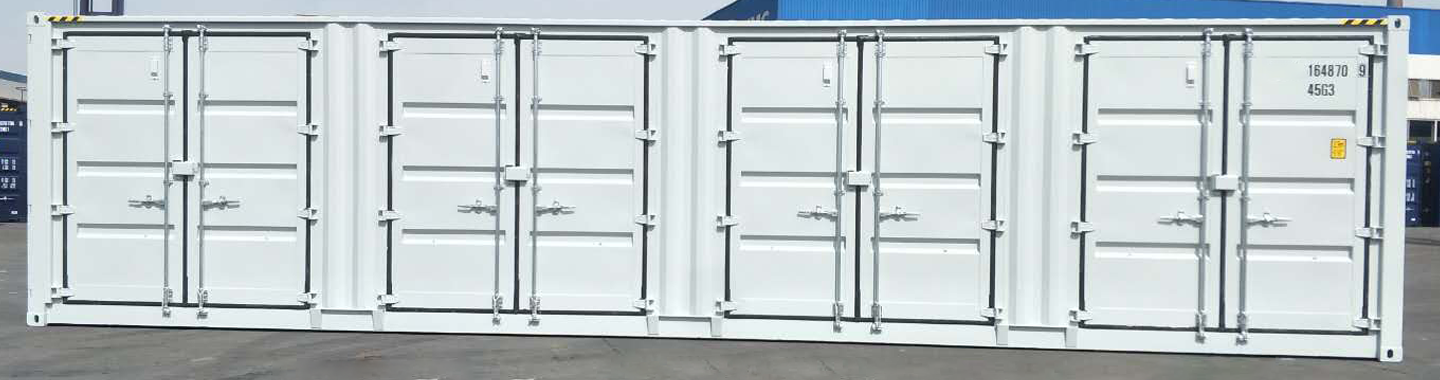

The structural strength of 40ft High Cube Container with 4 Side Doors is the core guarantee of its safe transportation function, and multiple test parameters confirm its reliable performance. The stacking capacity reaches 97200KG, which means that when stacking in a port or yard, even if 6 containers of the same type are stacked above, the bottom box can still maintain structural stability. This parameter is far beyond the stacking standards of ordinary containers. The rack test load is 15240KG, ensuring that the box is not prone to deformation when the lateral force is applied to the storage shelf, and is suitable for all kinds of storage scenarios.

The load-bearing design of the bottom structure is also strict. Floor TEST LOAD is up to 7260KG. This indicator ensures that the container base plate can withstand concentrated heavy-duty cargo, such as mechanical parts, metal materials, etc., to avoid floor damage caused by excessive local pressure. As the core load-bearing component, the bottom assembly uses a combination of high-strength steel and anti-slip flooring, which not only enhances structural rigidity, but also prevents goods from sliding during transportation, and doubles the safety of goods.

The modular design of the overall structure enhances the durability of the 40ft High Cube Container with 4 Side Doors. From the bottom assembly to the side assembly and the top assembly, each section has its own design number and specification standards for easy maintenance or replacement. This design not only extends the service life of the container, but also reduces the cost of use throughout the life cycle. CIMC Equilink-40ft High Cube Container with 4 Side Doors from CIMC Equilink strictly follows these structural standards, allowing safety performance to run through every link of cargo transportation.
