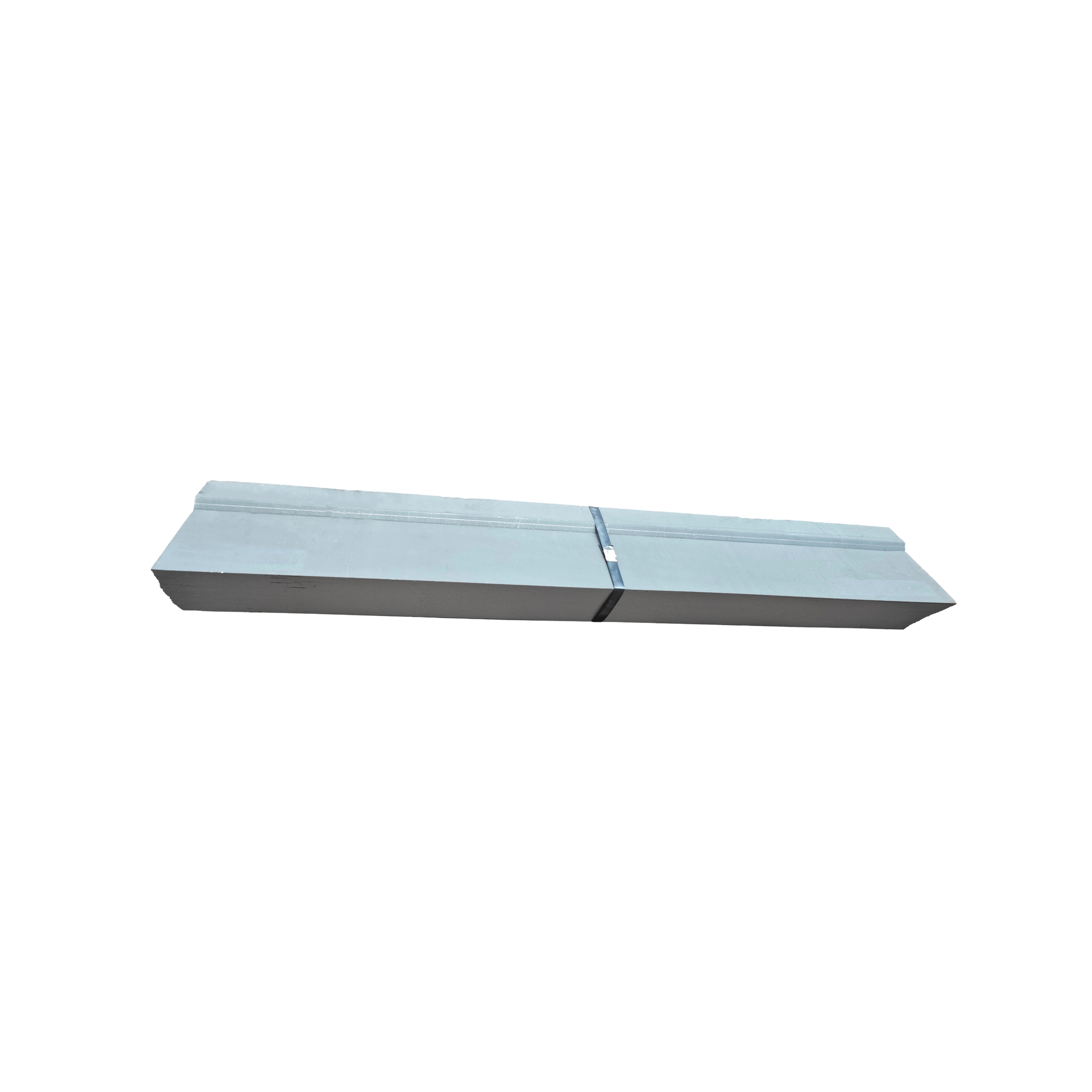

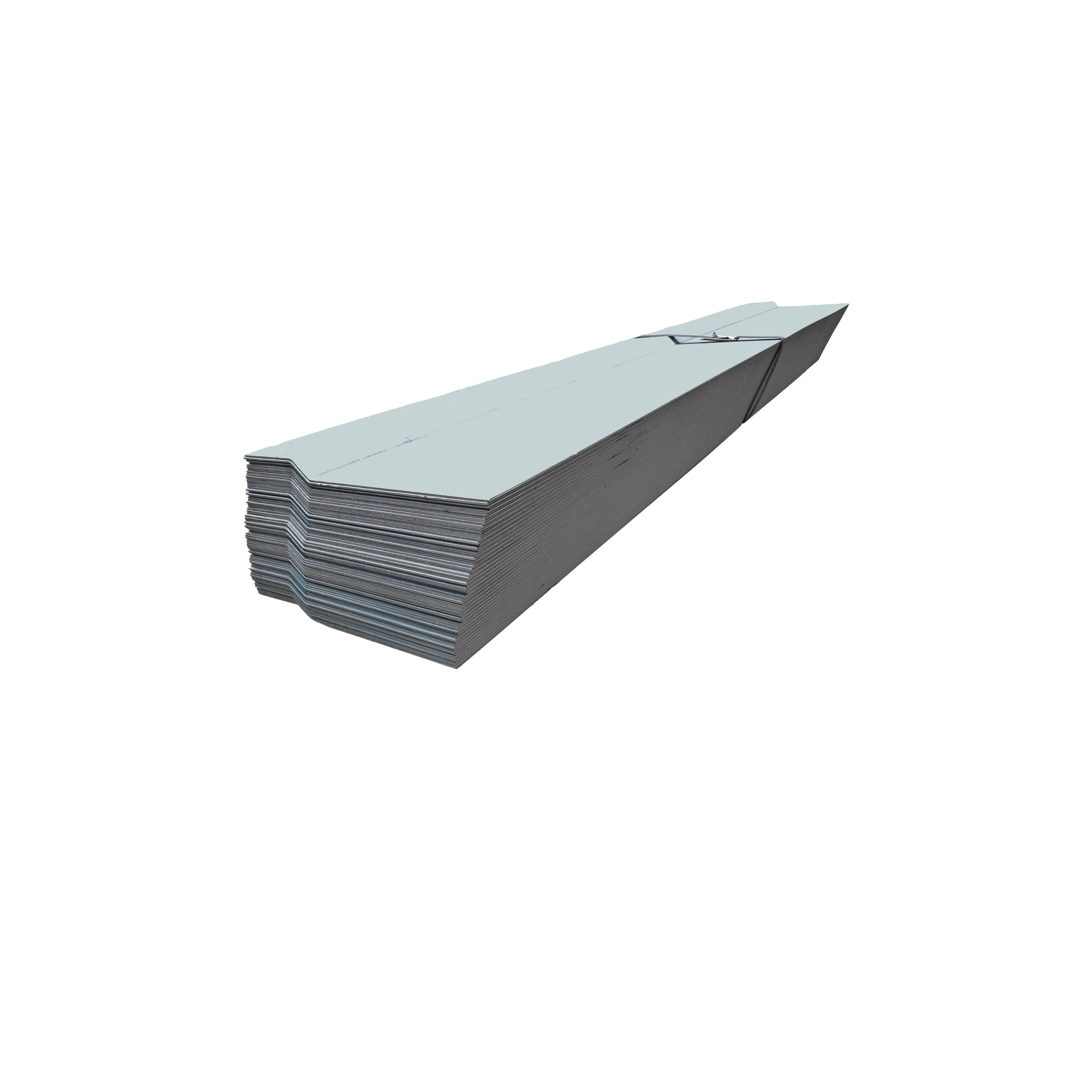

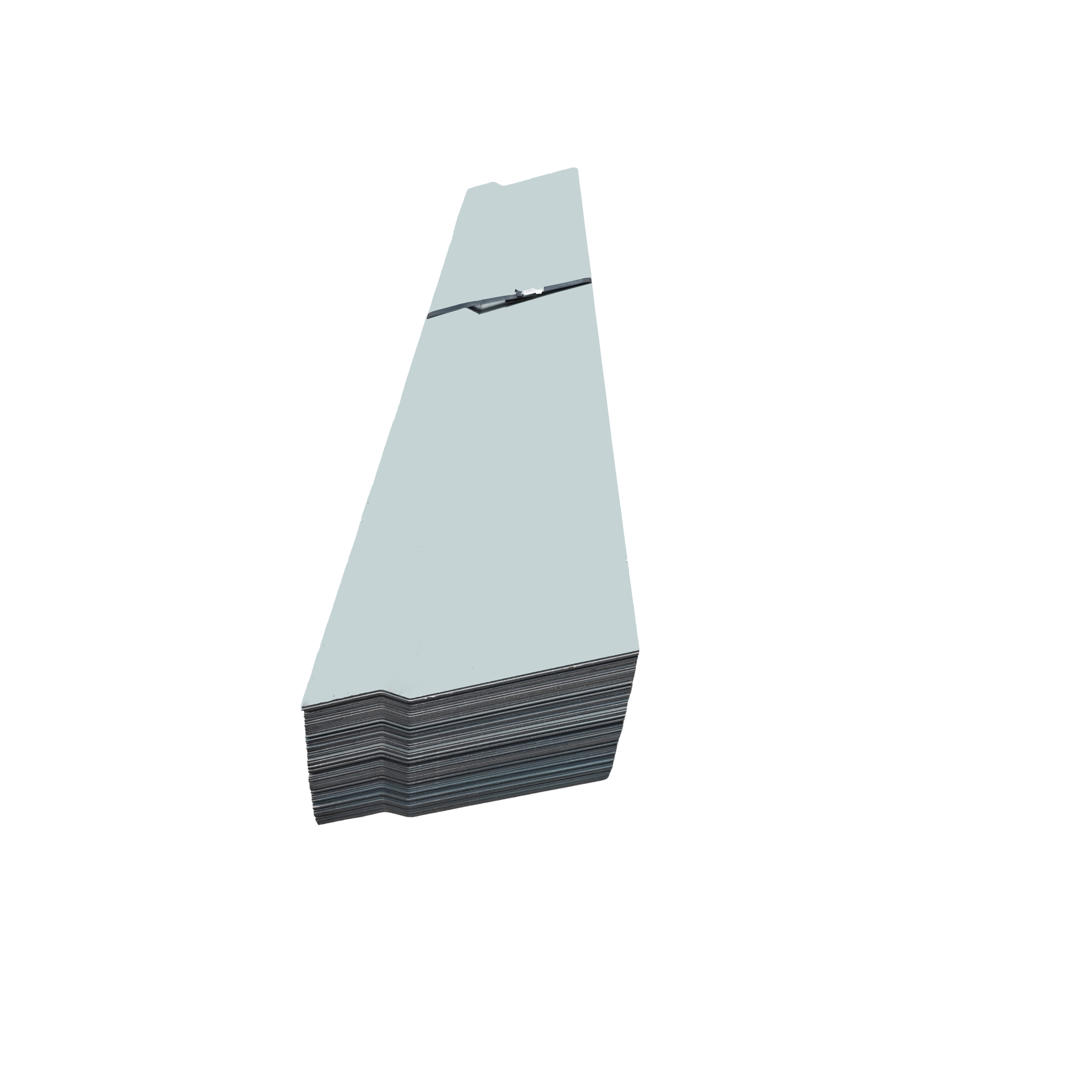

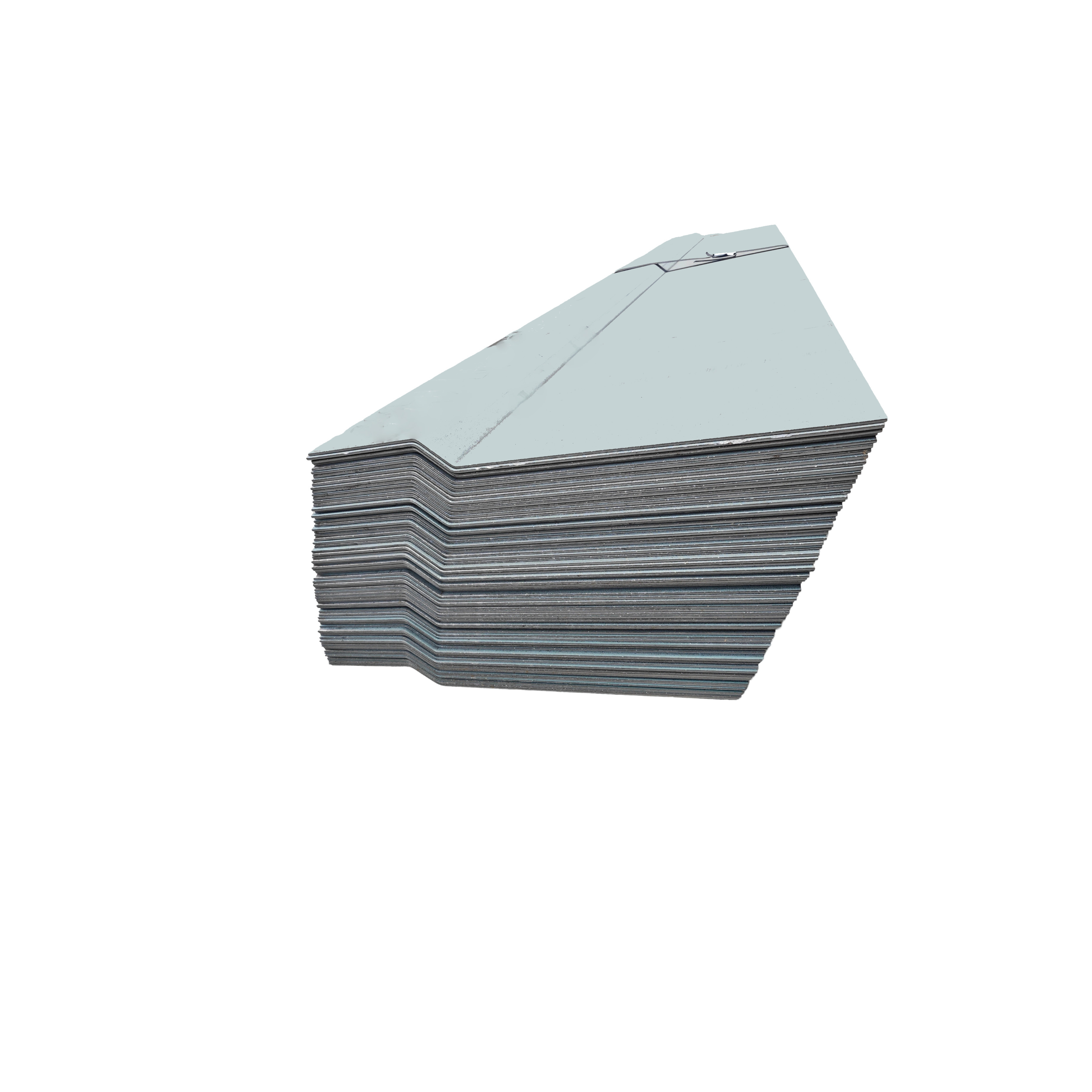

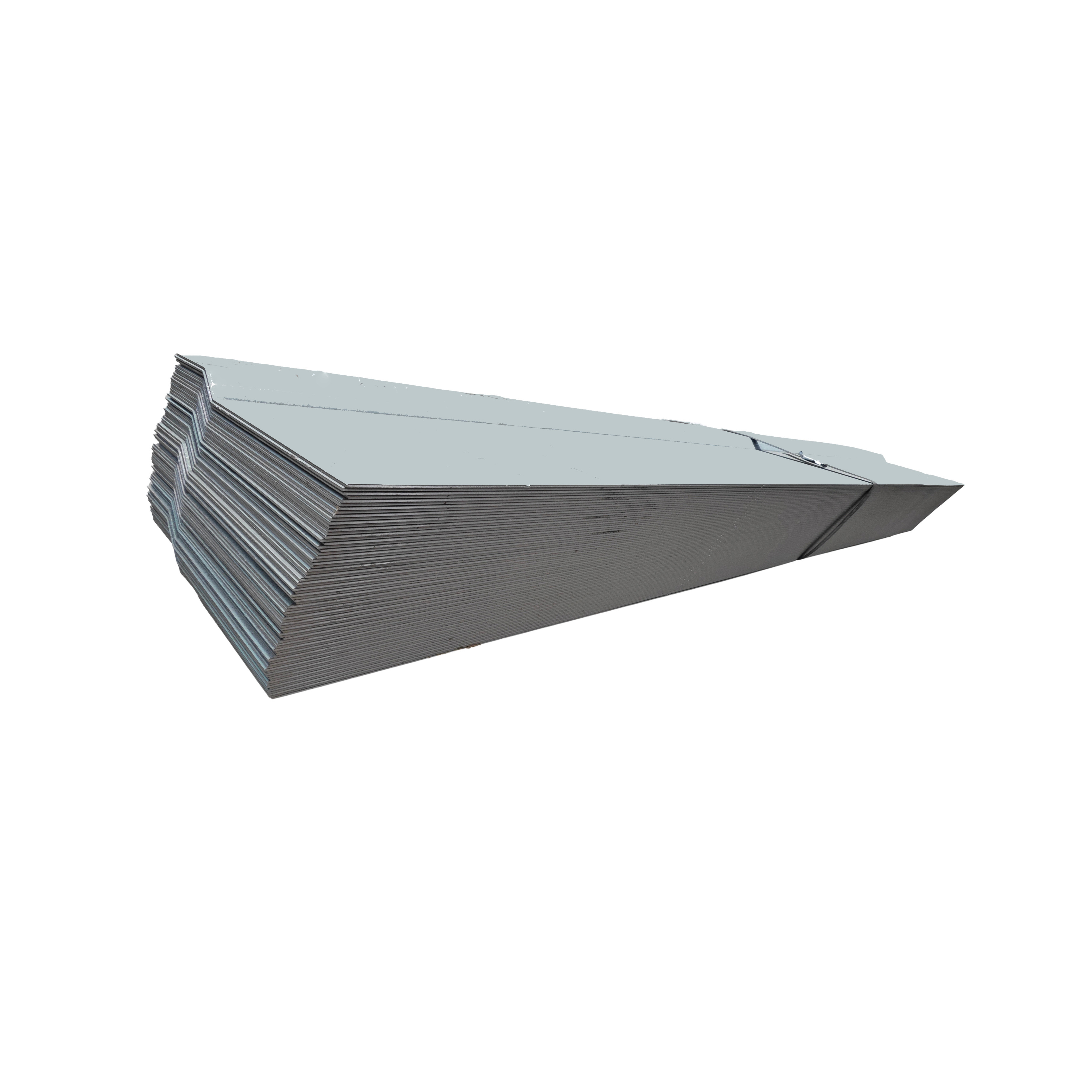

CIMC-D12-01 Top End RailEnhance container security with CIMC Equilink's robust Security Shipping ContainerTop End Rail. Durable, reliable, and designed to safeguard your cargo. Explore our solutions today!
20'
Product parameters
PART NO. Product Name Material Net Weight(KGS) Specification
CIMC-D12-01 Top End Rail Corten 23.117 3.0X100X26X277X2400
CIMC-D12-01-1 Top End Rail Corten 22.250 3.0X100X26X277X2310
CIMC-D12-01-10 Top End Rail Corten 16.730 3.0X110X26X150X2400
CIMC-D12-01-11 Top End Rail Corten 23.630 3.0X100X20X300X2350
CIMC-D12-01-1-1 Top End Rail Corten 25.036 3.0X100X26X300X2400
CIMC-D12-01-12 Top End Rail Corten 20.250 3.0X50X26X300X2400
CIMC-D12-01-2 Top End Rail Corten 30.822 4.0X100X26X277X2400
CIMC-D12-01-2-1 Top End Rail Corten 28.918 4.0X100X26X277X2350
CIMC-D12-01-2-A Top End Rail Corten 9.950 4.0X26X95X2400
CIMC-D12-01-2-Q Top End Rail Corten 30.822 4.0X100X26X277X2400
CIMC-D12-01-2-Q-1 Top End Rail Corten 30.170 4.0X100X26X277X2350
CIMC-D12-01-3 Top End Rail Corten 21.817 3.0X100X26X250X2400
CIMC-D12-01-4 Top End Rail Corten 20.121 3.0X100X26X220X2400
CIMC-D12-01-5 Top End Rail Corten 20.121 3.0X110X26X300X2400
CIMC-D12-01-6-Q Top End Rail Corten 21.030 4.0X180X30X90X2330
CIMC-D12-01-7-Q Top End Rail Corten 34.610 4.0X150X38X90X110X60X2332
CIMC-D12-01-8 Top End Rail Corten 29.280 3.0X100X60X370X2400
CIMC-D12-01-9 Top End Rail Corten 29.280 3.0X100X20X200X2350
CIMC-D12-01-A Top End Rail Corten 7.740 3.0X100X26X2400
CIMC-D12-01-A-1 Top End Rail Corten 7.400 3.0X100X25X2400
CIMC-D12-01-Q Top End Rail Corten 23.117 3.0X100X26X277X2400
CIMC-D12-02 Top End Rail Corten 19.612 3.0X121X26X194X2400
CIMC-D12-02-1 Top End Rail Corten 34.740 4.0X121X26X304X2400
CIMC-D12-02-3 Top End Rail Corten 25.434 3.0X60X80X300X2400
CIMC-D12-02-3-01 Top End Rail Corten 28.260 3.0X60X80X360X2400
CIMC-D12-02-4 Top End Rail Corten 32.216 3.0X50X100X90X26X300X2400
CIMC-D12-02-4-01 Top End Rail Corten 32.499 3.0X60X110X75X26X300X2400
CIMC-D12-02-4-02 Top End Rail Corten 25.654 3.0X60X100X310X2400
CIMC-D12-02-6 Top End Rail Corten 15.034 3.0X80X26X150X2400
CIMC-D12-02-7 Top End Rail Corten 28.320 3.0X120X26X344X2400
CIMC-D12-03 Top End Rail Corten 33.116 4.0X95X26X304.8X2420
CIMC-D12-03-02 Top End Rail Corten 29.650 4.0X55X26X300X2400
CIMC-D12-03-03 Top End Rail Corten 29.960 4.0x100x95x200x2400
CIMC-D12-03-1 Top End Rail Corten 24.837 3.0X95X26X304.8X2420
CIMC-D12-03-2 Top End Rail Corten 16.730 3.0X95X26X180X2400
CIMC-D12-04 Top End Rail Corten 45.935 4.0X152X26X406.40X2439
CIMC-D12-05 Top End Rail Corten 36.173 4.0X95X26X350X2400
CIMC-D12-05-1 Top End Rail Corten 28.335 4.0X90X26X250X2400
CIMC-D12-05-2 Top End Rail Corten 32.610 4.0X90X30X310X2400
CIMC-D12-06 Front Header Extension Plate Corten 45.951 4.5X55X115X270X2400
CIMC-D12-07 Front Header Extension Plate Corten 44.086 4.0X60X120X300X2400
CIMC-D12-07-02 Top End Rail Corten 39.800 4.0X80X110X370X2330
CIMC-D12-07-02-01-Q Top End Rail Corten 10.390 4.0X30X30X90X2330
CIMC-D12-07-02-02-Q Top End Rail Corten 31.620 4.0x315x80x60x2332
CIMC-D12-07-02-03-Q Top End Rail Corten 30.810 4.0x315x38x90x2332
CIMC-D12-07-02-04-Q Top End Rail Corten 21.030 4.0x180x38x90x2332
CIMC-D12-07-02-05-Q Top End Rail Corten 10.390 4.0x30x38x90x2332
CIMC-D12-07-02-06-Q Top End Rail Corten 30.230 4.0x315x30x90x2332
CIMC-D12-07-02-06-Q-1 Top End Rail Corten 33.317 4.0X315X30X110X2332
CIMC-D12-07-02-07-Q Top End Rail Corten 20.650 4.0X150X80X60X2332
CIMC-D12-07-02-08-Q Top End Rail Corten 38.457 4.0X150X80X60X2332
CIMC-D12-07-04 Front Header Plate Corten 32.329 4.0X60X85X300X2400
CIMC-D12-07-1 Top End Rail Corten 36.455 3.0X55X100X90X26X400X2400
CIMC-D12-07-10
Corten 27.129 3.0X60X110X80X20X230X2400
CIMC-D12-07-11 Top End Rail Corten 32.780 4.0X60X75X300X2400
CIMC-D12-07-2 Top End Rail Corten 41.749 4.0X60X100X370X2400
CIMC-D12-07-2-01 Top End Rail Corten 9.797 倾角150°
CIMC-D12-07-3
Corten 43.749 4.0X70X90X400X2332
CIMC-D12-07-4
Corten 41.749 4.0X70X70X400X2332
CIMC-D12-07-5
Corten 41.749 4.0X70X80X400X2332
CIMC-D12-07-6
Corten 41.749 4.0X70X110X400X2332
CIMC-D12-07-7
Corten 20.860 4.0X70X85X120X2332
CIMC-D12-07-8-Q
Corten 29.990 4.0X397X2332
CIMC-D12-07-9
Corten 33.158 4.0X60X80X300X2400
CIMC-D12-07-9-01 Extension plate Corten 32.405 4.0X60X80X290X2400
CIMC-D12-07-9-02 Extension plate Corten 38.434 4.0X60X80X370X2400
CIMC-D12-07-9-03 Extension plate Corten 31.651 4.0X95X26X305X2400
CIMC-D12-08 Top End Rail Corten 31.350 4.0X54X78X300X2400
CIMC-D12-09 Top End Rail Corten 41.707 4.0X60X112X115X292X2310
CIMC-D12-09-1 Top End Rail Corten 41.707 4.0X60X112X174X237X2310
CIMC-D12-09-10 Top End Rail Corten 42.051 4.0X60X105X75X295X2400
CIMC-D12-09-11 Top End Rail Corten 44.670 4.0x60x112x115x302x2400
CIMC-D12-09-1-1 Top End Rail Corten 44.670 4.0x60x112x115x302x2400
CIMC-D12-09-12 Top End Rail Corten 45.430 4.0x60x112x115x312x2400
CIMC-D12-09-16 Top End Rail Corten 38.660 4.0X60X89X380X2400
CIMC-D12-09-19 Front Header Extension Plate Corten 46.158 3.0X60X110X70X26X280X2400
CIMC-D12-09-2 Top End Rail Corten 37.137 4.0X60X87X377X2310
CIMC-D12-09-20 Front Header Plate Corten 42.051 4.0X375X85X55X2400
CIMC-D12-09-2-01 Top End Rail Corten 38.056 4.0x60x85x360x2400
CIMC-D12-09-21 Front Header Extension Plate Corten 27.120 3.0X60X100X380X2400
CIMC-D12-09-22-Q Top End Rail Corten 41.707 4.0X60X110X90X26X295X2350
CIMC-D12-09-22-Q-01 Top End Rail Corten 45.048 4.0X60X110X90X30X280X2350
CIMC-D12-09-23-Q Top End Rail Corten 41.707 4.0X295X38X90X110X60X2332
CIMC-D12-09-24 Front Header Extension Plate Corten 29.310 3.0X70X90X370X2400
CIMC-D12-09-25 Front Header Extension Plate Corten 34.364 4.0X60X100X70X26X200X2400
CIMC-D12-09-25-A1 Front Header Extension Plate Corten 22.760 4.0X55X110X70X26X30X2400
CIMC-D12-09-26 Front Header Extension Plate Corten 44.839 4.0x60x100x75x30x330x2400
CIMC-D12-09-26-01 Front Header Extension Plate Corten 45.592 4.0x60x100x85x30x330x2400
CIMC-D12-09-2-Q Top End Rail Corten 38.666 4.0X60X87X377X2350
CIMC-D12-09-2-Q-01 Top End Rail Corten 34.469 4.0x60x85x360x2350
CIMC-D12-09-3 Top End Rail Corten 36.399 3.0X55X100X95X370X2400
CIMC-D12-09-4 Front Header Extension Plate Corten 41.448 4.0X60X100X90X280X2400
CIMC-D12-09-4-01 Front Header Extension Plate Corten 44.086 4.0X60X110X90X30X295X2400
CIMC-D12-09-5 Top End Rail Corten 36.097 4.0X60X45X390X2400
CIMC-D12-09-6 Top End Rail Corten 39.263 4.0X60X87X390X2400
CIMC-D12-09-7 Top End Rail Corten 44.010 4.0X70X120X390X2400
CIMC-D12-09-8 Top End Rail Corten 35.344 4.0X45X60X380X2400
CIMC-D12-09-9 Top End Rail Corten 38.358 4.0X85X60X380X2400
CIMC-D12-09-Q Top End Rail Corten 41.710 4.0X60X112X115X292X2350
CIMC-D12-10 Top End Rail Corten 29.884 4.0X74X84X370X2310
CIMC-D12-10-1 Top End Rail Corten 29.884 4.0X60X87X377X2310
CIMC-D12-10-2 Top End Rail Corten 35.862 4.5X60X80X310X2350
CIMC-D12-11 Top End Rail Corten 14.243 4.0X60X85X60X2400
CIMC-D12-12 Top End Rail Corten 16.127 4.0X60X110X60X2400
CIMC-D12-12-10 Top End Rail Corten 14.370 4.0X55X85X55X2332
CIMC-D12-12-10-Q Top End Rail Corten 30.070 4.0x60x85x300x2350
CIMC-D12-12-2 Top End Rail Corten 17.634 4.0X60X110X80X2400
CIMC-D12-12-3 Top End Rail Corten 11.229 4.0X60X45X60X2400
CIMC-D12-12-4 Top End Rail Corten 13.896 4.0X60X80X60X2400
CIMC-D12-12-5 Top End Rail Corten 15.750 4.0X60X105X60X2400
CIMC-D12-12-6 Top End Rail Corten 17.257 4.0X105X85X55X2400
CIMC-D12-12-7 Top End Rail Corten 17.257 4.0x55x110x70x26x30x2400
CIMC-D12-12-8 Top End Rail Corten 17.257 4.0X60X87X40X2400
CIMC-D12-12-9 Top End Rail Corten 15.970 4.0X55X105X55X2350
CIMC-D12-13 Top End Rail Corten 33.516 3.0X58X110X425X2400
CIMC-D12-13-1 Top End Rail Corten 27.864 3.0X55X80X370X2400
CIMC-D12-13-10 Door Header Upper Corten 28.034 3.0X60X90X355X2400
CIMC-D12-13-2 Top End Rail Corten 34.892 4.0X65X40X370X2400
CIMC-D12-13-4 Front Header Extension Plate Corten 27.299 3.0X55X80X360X2400
CIMC-D12-13-5 Front Header Extension Plate Corten 32.329 4.0X55X80X310X2400
CIMC-D12-13-5-2 Front Header Extension Plate Corten 23.908 3.0X55X80X300X2400
CIMC-D12-13-5-3 Front Header Extension Plate Corten 24.170 3.0X90X26X300X2400
CIMC-D12-13-5-4 Front Header Extension Plate Corten 17.634 3.0X90X26X190X2400
CIMC-D12-13-5-5 Front Header Extension Plate Corten 12.547 3.0X90X26X100X2400
CIMC-D12-13-7-01 Top End Rail Corten 25.886 4.0X60X80X330X2400
CIMC-D12-13-8 Front Header Extension Plate Corten 28.430 3.0X55X80X380X2400
CIMC-D12-13-9 0 Corten 31.086 3.0X55X100X370X2400
CIMC-D12-13-9Q 0 Corten 31.086 3.0X55X100X370X2400
CIMC-D12-14 Top End Rail Corten 24.417 3.0X420X2400
CIMC-D12-15 Top End Rail Corten 29.673 3.0X80X87X370X2400
CIMC-D12-15-1 Top End Rail Corten 39.564 4.0X60X80X330X2400
CIMC-D12-15-2-Q Top End Rail Corten 39.564 4.0X370X80X60X2332
CIMC-D12-16 Top End Rail Corten 33.511 4.0X327X87X60X2310
CIMC-D12-17 Top End Rail Corten 46.205 4.5X112X437X2400
CIMC-D12-17-01 Top End Rail Corten 41.288 4.5X420X85X2400
CIMC-D12-18 Top End Rail Corten 36.964 4.5X362X87X2400
CIMC-D12-18-1 Top End Rail Corten 43.407 4.5X438X87X2400
CIMC-D12-19 Top End Rail Corten 17.634 4.0X60X90X100X2400
CIMC-D12-19-2 0 Corten 30.144
CIMC-D12-20-2 Front Header Plate Corten 35.871 4.0X90X60X342X2400
CIMC-D12-20-3 Front Header Plate Corten 31.850 4.0X90X30X278X2400
CIMC-D12-20-4 Front Header Plate Corten 43.167 4.0X110X453X2350
