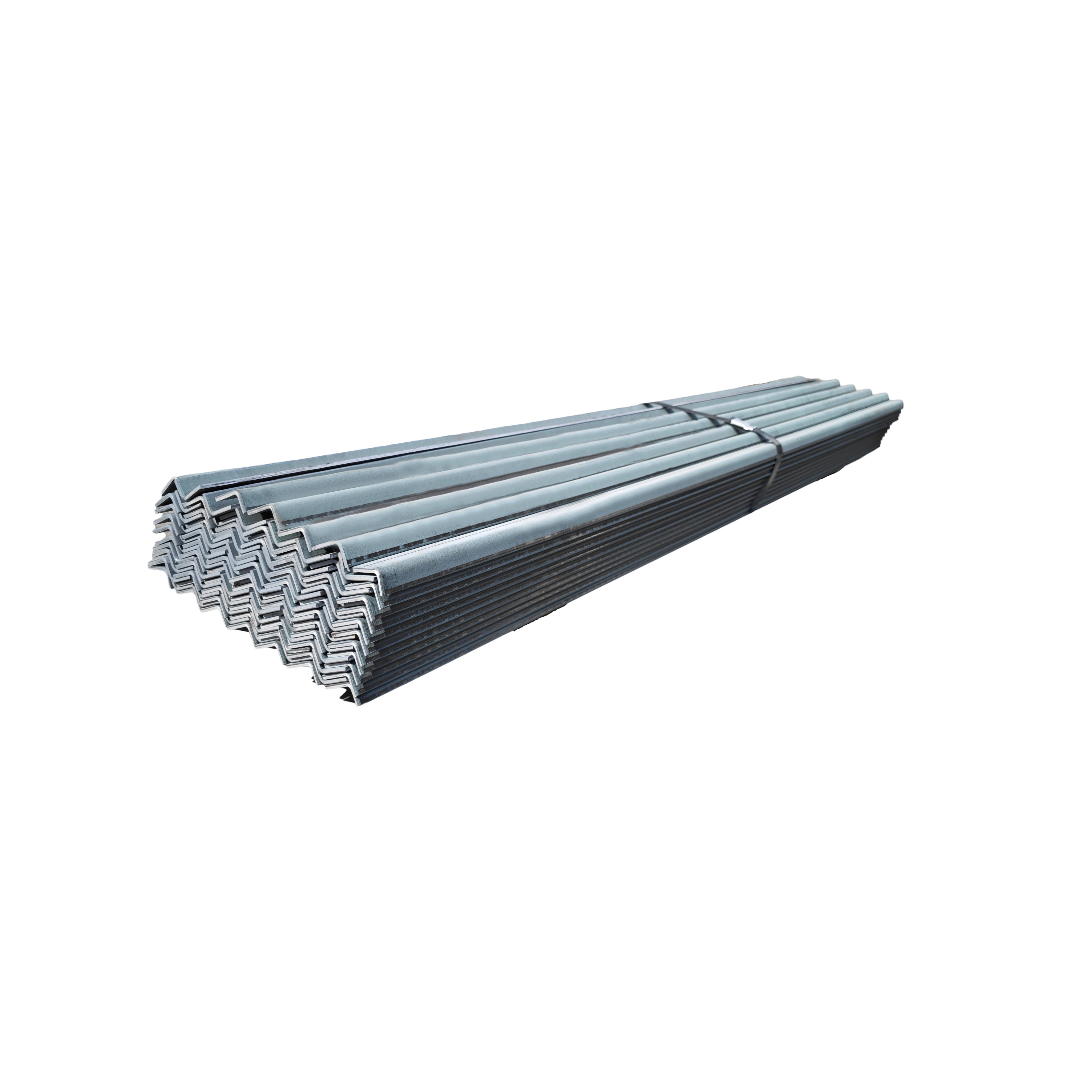

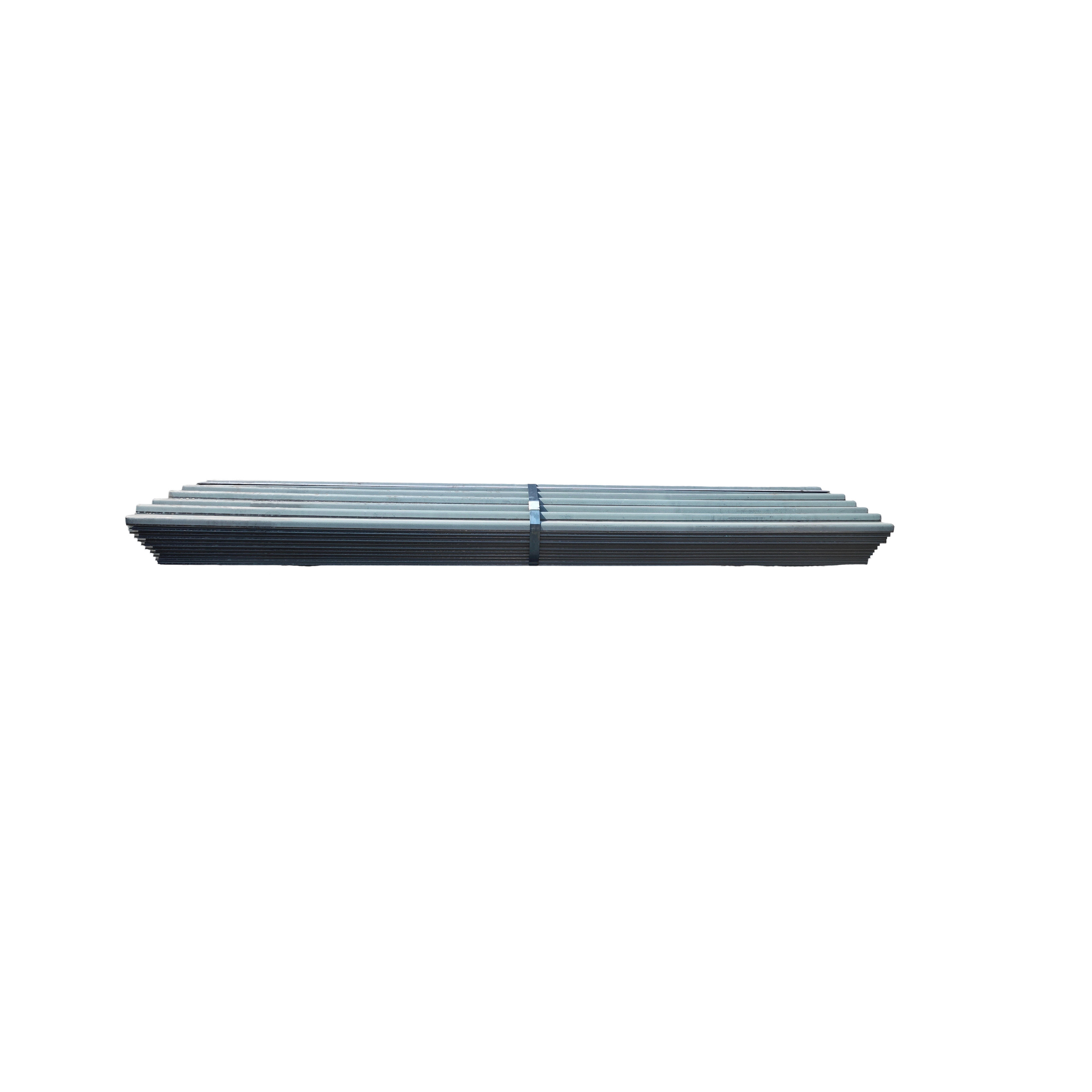

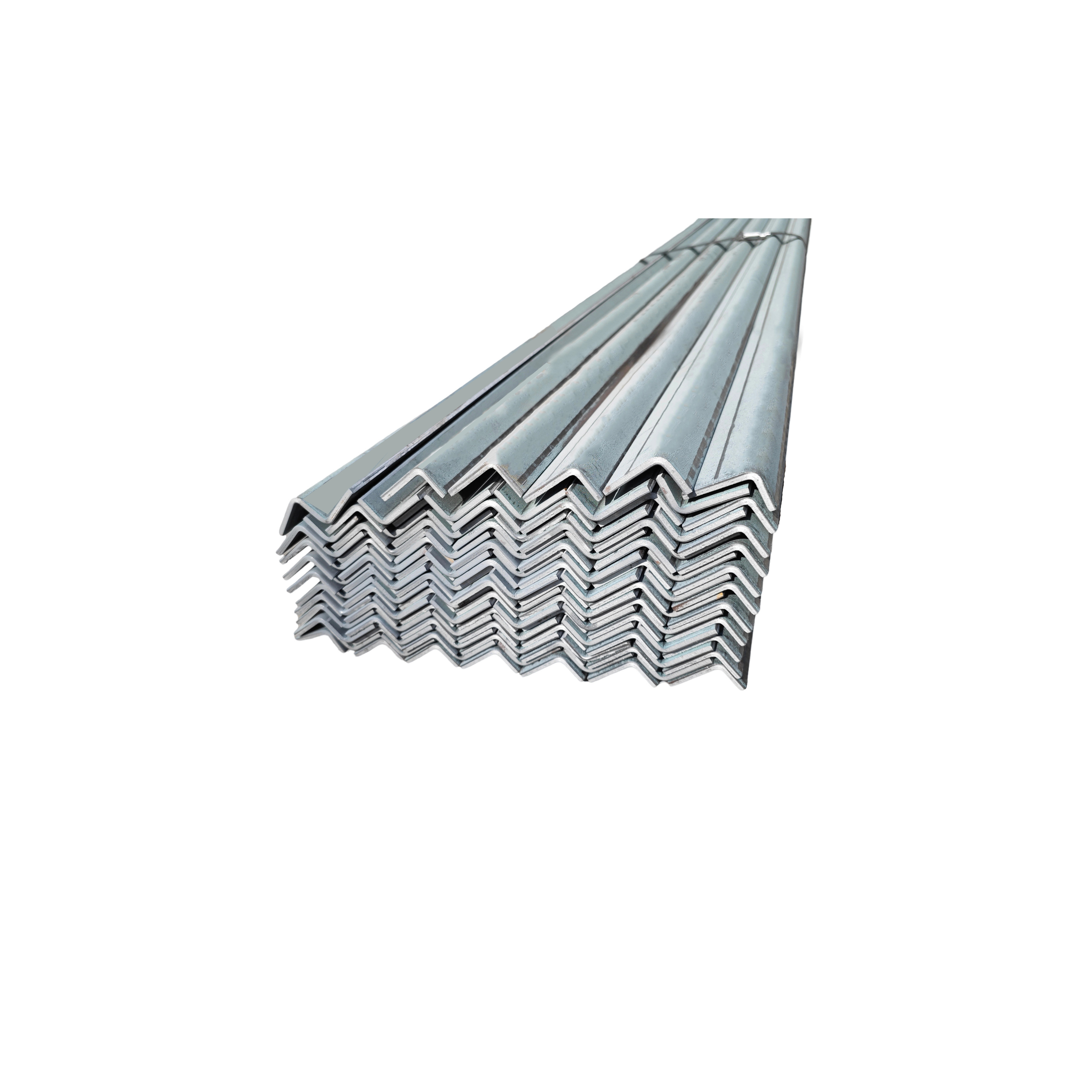

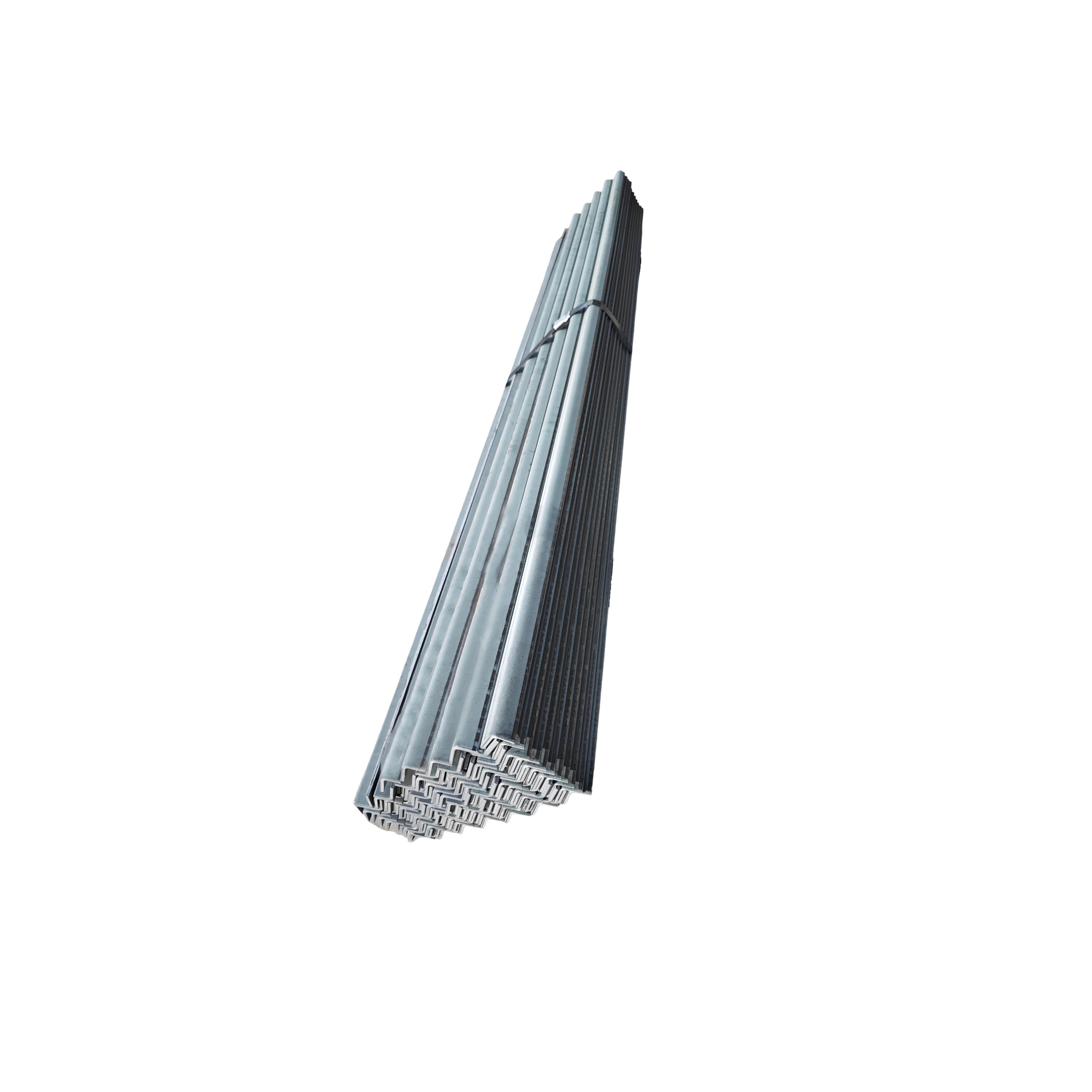

CIMC-D16-01A AngleEnhance container security with CIMC Equilink's robust Security Shipping Container Angle. Durable, reliable, and designed to safeguard your cargo. Explore our solutions today!
Product parameters
PART NO. Product Name Material Net Weight(KGS) Specification
CIMC-D16-01A Angle Corten 6.019 4.5X30X50X2400 CIMC-D16-01A-1 Angle Corten 6.443 4.5X50X35X2400 CIMC-D16-01A-2 Angle Corten 6.867 4.5X50X40X2400 CIMC-D16-01A-3 Angle Corten 6.867 4.5X60X30X2400 CIMC-D16-01A-4 Angle Corten 6.976 4.5X60X30X2438 CIMC-D16-01A-4-Q Angle Corten 5.93 4.5X30X50X2332 CIMC-D16-01A-5 Angle Corten 6.11 4.5X30X50X2438 CIMC-D16-01A-6 Angle Corten 11.28 4.5X60X80X2438 CIMC-D16-01A-7 Angle Corten 9.411 4.5X60X60X2400 CIMC-D16-01A-Q Angle Corten 6.019 4.5X30X50X2400 CIMC-D16-01B Angle Corten 7.715 4.5X50X50X2400 CIMC-D16-01B-1 Angle Corten 10.258 4.5X50X80X2400 CIMC-D16-01B-2 Angle Corten 11.106 4.5X50X90X2400 CIMC-D16-01B-3 Angle Corten 15.345 4.5X50X140X2400 CIMC-D16-01B-4 Angle Corten 8.563 4.5X60X50X2400 CIMC-D16-01B-5 Angle Corten 9.834 4.5X50X75X2400 CIMC-D16-01B-6 Angle Corten 9.644 4.5X50X50X3000 CIMC-D16-01B-7 Angle Corten 15.59 4.5X50X140X2438 CIMC-D16-01C Angle Corten 11.954 4.5X90X60X2400 CIMC-D16-01C-1 Angle Corten 8.563 4.5X90X20X2400 CIMC-D16-01C-2 Angle Corten 9.411 4.5X90X30X2400 CIMC-D16-01C-3 Angle Corten 14.497 4.5X90X90X2400 CIMC-D16-01C-4 Angle Corten 17.041 4.5X90X120X2400 CIMC-D16-01C-5 Angle Corten 20.432 4.5X90X160X2400 CIMC-D16-01D Angle Corten 10.258 4.5X100X30X2400 CIMC-D16-01E Angle Corten 11.106 4.5X100X40X2400 CIMC-D16-01E-1 Angle Corten 9.411 4.5X80X40X2400 CIMC-D16-01F Angle Corten 11.53 4.5X100X45X2400 CIMC-D16-01F-1 Angle Corten 9.834 4.5X80X45X2400 CIMC-D16-01F-2 Angle Corten 23.97 4.5X80X210X2400 CIMC-D16-01F-3 Angle Corten 10.42 4.5X30X100X2438 CIMC-D16-01F-4 Angle Corten 11.71 4.5X45X100X2438 CIMC-D16-01G Angle Corten 11.954 4.5X50X100X2400 CIMC-D16-01G-1 Angle Corten 12.802 4.5X60X100X2400 CIMC-D16-01G-2 Angle Corten 13 4.5X60X100X2438 CIMC-D16-01G-3 Cross Member Corten 12.14 4.5X50X100X2438 CIMC-D16-01H Angle Corten 14.497 4.5X100X80X2400 CIMC-D16-01H-2 Angle Corten 16.19 4.5X100X100X2400 CIMC-D16-01I Angle Corten 12.378 4.5X45X110X2400 CIMC-D16-01I-1 Angle Corten 11.954 4.5X40X110X2400 CIMC-D16-01I-2 Angle Corten 12.802 4.5X50X110X2400 CIMC-D16-01I-3 Angle Corten 13.65 4.5X60X110X2400 CIMC-D16-01I-4 Angle Corten 11.106 4.5X30X110X2400 CIMC-D16-01I-5 Angle Corten 13 4.5X50X110X2438 CIMC-D16-01I-6 Angle Corten 6.019 4.5X35X45X2400 CIMC-D16-01I-7 Angle Corten 11.28 4.5X40X100X2438 CIMC-D16-01I-Q Angle Corten 5.849 4.5X40X40X2332 CIMC-D16-01J Angle Corten 15.345 4.5X110X80X2400 CIMC-D16-01K Angle Corten 12.802 4.5X45X115X2400 CIMC-D16-01K-1 Angle Corten 12.378 4.5X40X115X2400 CIMC-D16-01K-2 Angle Corten 11.53 4.5X30X115X2400 CIMC-D16-01K-3 Angle Corten 12.894 4.5X30X1255X2400 CIMC-D16-01K-4 Angle Corten 13 4.5X45X115X2438 CIMC-D16-01L Angle Corten 13.226 4.5X115X50X2400 CIMC-D16-01L-1 Angle Corten 14.921 4.5X115X70X2400 CIMC-D16-01L-2 Angle Corten 14.073 4.5X115X60X2400 CIMC-D16-01M Angle Corten 11.954 4.5X120X30X2400 CIMC-D16-01M-1 Angle Corten 8.56 4.5X30X80X2400 CIMC-D16-01M-2 Angle Corten 11.954 4.0X30X150X2400 CIMC-D16-01M-3 Angle Corten 9.42 4.0X30X95X2400 CIMC-D16-01M-4-Q Angle Corten 11.36 4.0X30X140X2350 CIMC-D16-01N Angle Corten 12.802 4.5X120X40X2400 CIMC-D16-01O Angle Corten 13.226 4.5X120X45X2400 CIMC-D16-01P Angle Corten 13.65 4.5X120X50X2400 CIMC-D16-01Q Angle Corten 14.497 4.5X120X60X2400 CIMC-D16-01Q-1 Angle Corten 11.106 4.5X60X80X2400 CIMC-D16-01R Angle Corten 16.193 4.5X120X80X2400 CIMC-D16-01R-1 Angle Corten 20.241 4.5X120X80X3000 CIMC-D16-01R-2 Angle Corten 16.193 4.5X150X50X2400 CIMC-D16-01R-3 Angle Corten 15.769 4.5X45X150X2400 CIMC-D16-01R-4
Corten 11.53
CIMC-D16-01S Angle Corten 14.497 4.5X140X40X2400 CIMC-D16-01S-1 Angle Corten 16.193 4.5X140X60X2400 CIMC-D16-01T Angle Corten 17.041 4.5X150X60X2400 CIMC-D16-01U Angle Corten 18.67 4.5X75X152.4X2420 CIMC-D16-01V Angle Corten 10.851 4.5X45X90X2438 CIMC-D16-01V-1 Angle Corten 9.56 4.5X30X90X2438 CIMC-D16-01V-2 Angle Corten 9.99 4.5X50X75X2438 CIMC-D16-01V-3 Angle Corten 8.268 4.5X45X60X2438 CIMC-D16-01V-4 Angle Corten 16.794 4.5X54X150X2438 CIMC-D16-01V-5 Angle Corten 10.682 4.5X45X90X2400 CIMC-D16-01V-6
Corten 8.139
CIMC-D16-01W Angle Corten 3.476 4.5X30X20X2400 CIMC-D16-01X Angle Corten 13.44 4.5X45X120X2438 CIMC-D16-02A Angle Corten 26.904 6.0X130X120X2400 CIMC-D16-02A-1 Angle Corten 25.773 6.0X120X120X2400 CIMC-D16-02A-1-Q 0 Corten 24.91 6.0X120X120X2400 CIMC-D16-02A-2 Angle Corten 28.478 6.0X120X140X2438 CIMC-D16-02A-3 Angle Corten 25.491 6.0X125X112.5X2400 CIMC-D16-02A-4 Angle Corten 30.266 6.0X120X130X2700 CIMC-D16-02A-4-Q Angle Corten 30.266 6.0X120X130X2700 CIMC-D16-02A-5 Angle Corten 25.773 6.0X130X110X2400 CIMC-D16-02A-6 Angle Corten 28.034 6.0X140X120X2400 CIMC-D16-02A-7 Angle Corten 28.034 6.0X110X120X2400 CIMC-D16-02A-8-Q 0 Corten 21.636 6.0X90X120X2350 CIMC-D16-02A-9-Q 0 Corten 22.38 6.0X90X120X2400 CIMC-D16-02A-Q 0 Corten 25.773 6.0X130X120X2400 CIMC-D16-02B Angle Corten 21.252 6.0X100X100X2400 CIMC-D16-02B-1 Angle Corten 21.429 6.0X100X100X2420 CIMC-D16-02B-2 Angle Corten 21.606 6.0X100X100X2440 CIMC-D16-02B-3 Angle Corten 23.512 6.0X100X120X2400 CIMC-D16-02B-4 Angle Corten 18.991 6.0X80X100X2400 CIMC-D16-02B-5 Angle Corten 26.564 6.0X100X100X3000 CIMC-D16-02B-6 Angle Corten 20.12 6.0X90X100X2400 CIMC-D16-02B-6-Q Angle Corten 20.12 6.0X90X100X2400 CIMC-D16-02C Angle Corten 30.86 6.0X135X150X2400 CIMC-D16-02C-1 Angle Corten 29.977 6.0X125X150X2420 CIMC-D16-02C-10 Angle Corten 29.63 6.0X130X140X2438 CIMC-D16-02C-2 Angle Corten 33.283 6.0X152X152X2420 CIMC-D16-02C-3 Angle Corten 27.356 6.0X127X127X2400 CIMC-D16-02C-4 Angle Corten 37.202 6.0X152X152X2705 CIMC-D16-02C-5 Angle Corten 28.034 6.0X130X130X2400 CIMC-D16-02C-6 Angle Corten 19.443 6.0X152X32X2400 CIMC-D16-02C-7 Angle Corten 38.575 6.0X135X150X3000 CIMC-D16-02C-8 Angle Corten 30.295 6.0X130X150X2400 CIMC-D16-02C-9 Angle Corten 29.62 6.0X135X135X2400 CIMC-D16-02C-Q Angle Corten 30.86 6.0X135X150X2400 CIMC-D16-02D Angle Corten 1.922 6.0X50X30X600 CIMC-D16-02D-1 Angle Corten 3.843 6.0X50X30X1200 CIMC-D16-02D-10 Angle Corten 7.81 CIMC-D16-02D-10 CIMC-D16-02D-2 Angle Corten 7.687 6.0X50X30X2400 CIMC-D16-02D-2Q 0 Corten 7.687 6.0X50X30X2400 CIMC-D16-02D-3 Angle Corten 8.007 6.0X50X30X2500 CIMC-D16-02D-4 Angle Corten 6.383 6.0X38X30X2420 CIMC-D16-02D-5 Angle Corten 7.751 6.0X50X30X2420 CIMC-D16-02D-6 Angle Corten 13.339 6.0X100X30X2400 CIMC-D16-02D-7Q 0 Corten 8.648 6.0X50X30X2700 CIMC-D16-02D-9 Angle Corten 13.339 6.0X30X50X300 CIMC-D16-02D-Q Angle Corten 1.922 6.0X30X50X600 CIMC-D16-02E Angle Corten 2.204 6.0X60X30X600 CIMC-D16-02E-1 Angle Corten 8.891 6.0X60X30X2420 CIMC-D16-02E-2 Angle Corten 8.817 6.0X60X30X2400 CIMC-D16-02E-3 Angle Corten 9.347 6.0X31X63X2420 CIMC-D16-02E-4 Angle Corten 2.063 6.0X30X55X600 CIMC-D16-02E-5 Angle Corten 2.063 6.0X35X55X600 CIMC-D16-02E-6 Angle Corten 12.71 6.0X60X40X2700 CIMC-D16-02F Angle Corten 8.817 6.0X55X35X2400 CIMC-D16-02F-1 Angle Corten 8.321 6.0X50X35X2420 CIMC-D16-02F-2 Angle Corten 9.948 6.0X50X50X2400 CIMC-D16-02F-3 Angle Corten 7.122 6.0X25X50X2400 CIMC-D16-02F-4 Angle Corten 17.415 6.0X35X116X2660 CIMC-D16-02F-5 Angle Corten 7.03 6.0X43X75X1400 CIMC-D16-02F-6 Angle Corten 12.16 6.0X45X62X2700 CIMC-D16-02F-7-Q Angle Corten 9.91 6.0X35X55X2700 CIMC-D16-02F-Q Angle Corten 8.9 6.0X35X55X2400 CIMC-D16-02G-Q-1 Angle Corten 32.216 6.0X63X63X6000 CIMC-D16-03A Angle Corten 5.426 4.0X50X30X2400 CIMC-D16-03A-1 Angle Corten 7.31 4.0X75X30X2400 CIMC-D16-03A-10 Angle Corten 6.98 4.0X70X30X2400 CIMC-D16-03A-10-Q Angle Corten 5.748 4.0X30X60X2330 CIMC-D16-03A-10-Q-1 Angle Corten 5.748 4.0X30X60X2332 CIMC-D16-03A-11-Q Angle Corten 8.264 4.0X30X90X2330 CIMC-D16-03A-12-Q Angle Corten 12.58 4.0X40X140X2330 CIMC-D16-03A-13-Q Angle Corten 5.009 4.0X30X50X2332 CIMC-D16-03A-2 Angle Corten 5.803 4.0X35X50X2400 CIMC-D16-03A-3 Angle Corten 5.313 4.0X30X50X2350 CIMC-D16-03A-3Q 0 Corten 5.313 4.0X30X50X2350 CIMC-D16-03A-4 Angle Corten 5.049 4.0X25X50X2400 CIMC-D16-03A-5 Angle Corten 6.18 4.0X30X60X2400 CIMC-D16-03A-5-Q Angle Corten 5.75 4.0X30X60X2350 CIMC-D16-03A-6 Angle Corten 8.574 4.0X30X90X2438 CIMC-D16-03A-7 Angle Corten 8.264 4.0X30X90X2350 Share:
