Container transportation has evolved into the cornerstone of global international trade after decades of rapid development, renowned for its efficient logistics, fast loading and unloading, and seamless cross-border mobility—hailed as a "revolution in transportation history". As the core carrier of this logistics model, a container’s structural stability directly determines cargo safety during transit, and the Container Cross Member stands as the indispensable load-bearing core of the container’s base assembly, a small but critical component that underpins the entire container’s structural strength.

Below, we detail the core functions, structural specifications, material selection and CIMC Equilink’s premium supply solutions for the Container Cross Member, the top-selling container part in our product lineup.

The Core Position of Container Cross Member in Container Structure

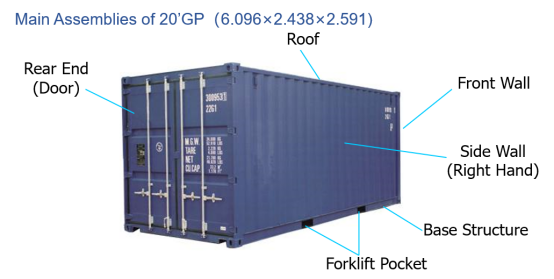

A standard shipping container is composed of five key assemblies: side, rear end, front end, roof and base—the base assembly is the primary load-bearing structure that bears the full weight of the cargo and the container itself.

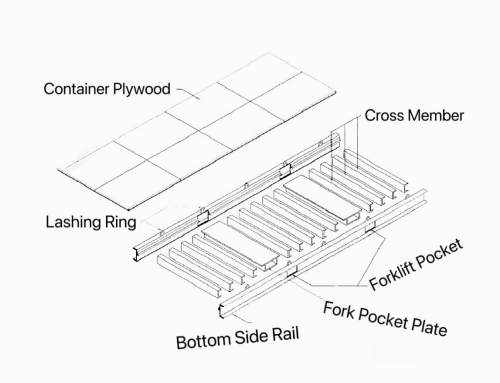

For a 20’GP dry container, the base assembly is configured with core components including 2 bottom side rails, 14 cross members, 6 pieces of container plywood, tapping screws, lashing rings and forklift pockets. The Container Cross Member, installed horizontally between the two bottom side rails, is the key stress-bearing component of the base assembly: it distributes the vertical and horizontal loads borne by the base evenly to the bottom side rails, effectively enhancing the overall structural strength and anti-deformation capacity of the container base, and preventing structural damage caused by heavy cargo pressure, road/sea vibration and handling impact.

Key Specifications & Material Selection of Container Cross Member

CIMC Equilink’s Container Cross Member is manufactured in strict accordance with international container industry standards, with high-quality material selection and precise dimensional design to ensure optimal load-bearing performance and durability:

1. Premium Material: SPA-H Corten Steel

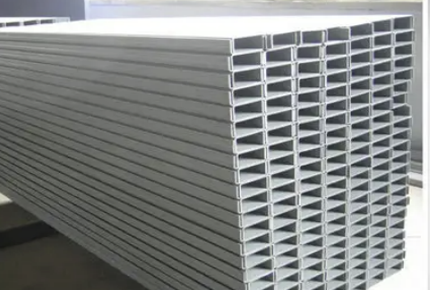

The cross member is a stamped C-shaped steel component made of SPA-H Corten Steel—a weathering steel with excellent corrosion resistance, high tensile strength and good stamping formability. It can withstand the harsh marine salt spray, high and low temperature and humid environments in global container transportation, and has a long service life without easy rust and deformation.

2. Standard Dimensional Parameters

• Thickness: 4mm / 4.5mm (the most common specifications for standard 20’GP containers)

• Upper/lower wing plate width: 45mm (narrow side cross member); 75mm (upper wing plate of wide side cross member)

• Height: 122mm

3. Customizable Specifications for Maintenance

For container repair and refitting needs, we offer customized cross member dimensions tailored to customer actual requirements:

• Customizable upper/lower wing plate width: 20mm ~ 80mm

• Customizable height: 80mm ~ 130mm

4. Standard Configuration for 20’GP Dry Container

A single 20’GP dry container is equipped with 14 cross members in total: 12 narrow side cross members + 2 wide side cross members, all evenly distributed at the container bottom with front and rear ends welded to the bottom side rails for firm connection. The wide side cross members are installed with the short end down and long end up, specially designed to facilitate the lap joint of two pieces of container plywood, ensuring the flatness and stability of the container floor.

CIMC Equilink’s Container Cross Member – A Top 10 Best-Selling Product

The Container Cross Member has long ranked among the Top 10 best-selling products in CIMC Equilink’s full range of container parts, winning the trust of global customers for three core advantages:

1. Strict Quality Control, High Precision & High Quality

We adhere to strict processing standards from raw material procurement to stamping, forming and inspection, ensuring each cross member has precise dimensions, smooth stamping and strong load-bearing capacity—fully meeting the maintenance and production needs of standard containers.

2. Optimized Packaging for Global Transportation

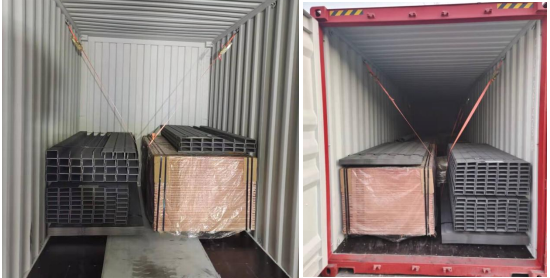

To adapt to domestic and international sea, land and air transportation modes, we adopt standardized packaging solutions: 112 pieces/package or 56 pieces/package. The packaged products are neat and orderly, easy to load and unload in containers, and can withstand long-distance shipping bumps and transportation damage, ensuring the products are delivered to customers in perfect condition.

3. Large Inventory, Fast Delivery

As a core container maintenance part, the cross member has a large market demand. We maintain a sufficient inventory of standard specifications all year round, supporting immediate order fulfillment and fast delivery to global ports and customers.

One-Stop Container Parts Supply with ISO Standard Compliance

Beyond the Container Cross Member, all container parts provided by CIMC Equilink comply with international ISO standards, covering core structural parts (container corner casting, corner post, bottom side rail), functional parts (container gasket, hinge blade, twist lock) and maintenance parts (container plywood, lashing ring, forklift pocket) and more.

We build a professional one-stop container parts supply and service platform for global customers, providing integrated solutions from product selection, customization to packaging and delivery, solving all your container parts procurement needs with efficient and convenient services—no need to cooperate with multiple suppliers, saving procurement time and logistics costs.

Get Your High-Quality Container Cross Member & Parts Quote Today

If you are looking for high-precision, high-quality Container Cross Member (standard or customized specifications) or other ISO standard container parts, or need one-stop container parts procurement solutions, CIMC Equilink is your trusted global partner.

Contact us for personalized product recommendations and competitive pricing:

• Email: info.equilink@cimc.com

• Submit a quick quote: Get instant access to inventory and delivery details

CIMC Equilink – Focus on every core component of containers, guard the structural stability and cargo safety of your containers with high-quality parts!
